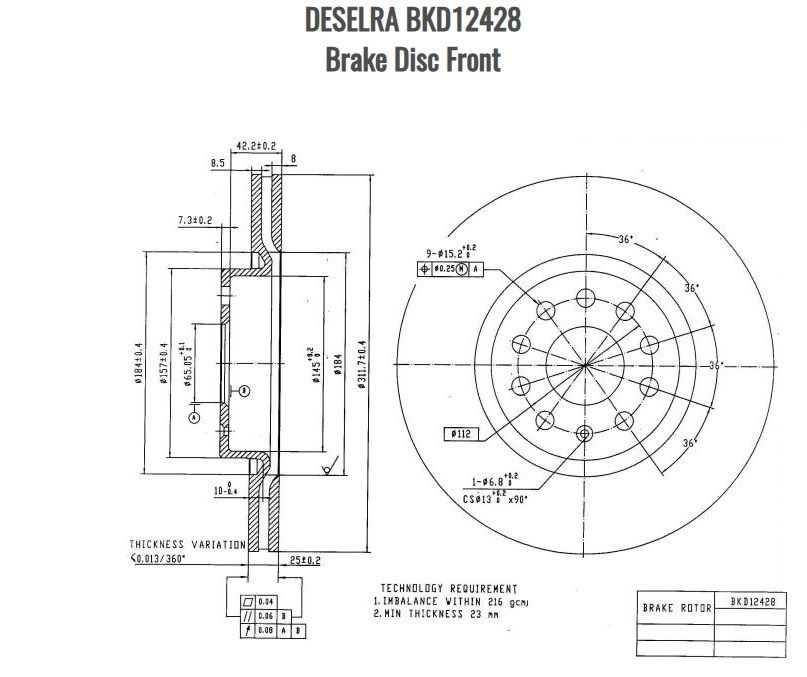

Brake Disc Front Ventilated BKD12428
Product Details
-
Characteristics
| Diameter | 312 mm |
| Outer Diameter | 312 mm |
| Brake Disc Thickness | 25 mm, 25 mm |
| Minimum thickness | 22 mm, 23 mm |
| Brake Disc Type | Vented, |
| Centering Diameter | 65 mm, 65 mm |
| Machining | High-carbon |
| Number of Holes | 9, 5 |
| Height | 49,5 mm, 49,9 mm |
| Surface | Coated |
| No. of holes 2 | 9 |
| Bolt Hole Circle Ø | 112 mm |
| Inner Diameter | 146 mm |
| Bore Ø | 15,3 mm |
| Supplementary Article/Info 2 | with bolts/screws |
| MAPP code available | |
| Test Mark | E1 90R-02C0115/1001 |
-
Criteria
| for PR number | 1LJ |
| for PR number | 1LL |
| for PR number | 1LV |
| for PR number | 1ZD |
| Construction year to | 09.2008 |
| Fitting Position | Front Axle |
-
Used in 808 Passenger Cars
| AUDI | A1 1.2 (8X1, 8XA, 8XF), A1 1.4 (8X1, 8XA, 8XF, 8XK), A1 1.6 (8X1, 8XA, 8XF, 8XK), A3 1.0 (8F, 8V, 8V1, 8VA, 8VS, 8Y), A3 1.2 (8V1, 8VA), ... |
| SEAT | Altea 2.0 (5P1), Leon 2.0 (1P1) |
| SUZUKI | Jimny 1.5 (JB74) |
| VW | Arteon 2.0 (3H7), Beetle 1.2 (5C1), Beetle 1.4 (5C, 5C1), Caddy 1.0 (SAB, SAJ), Caddy 1.6 (2CA, 2CH, 2KA, 2KB, 2KH,2KJ, SAA, SAH, SAB, SAJ), . |
