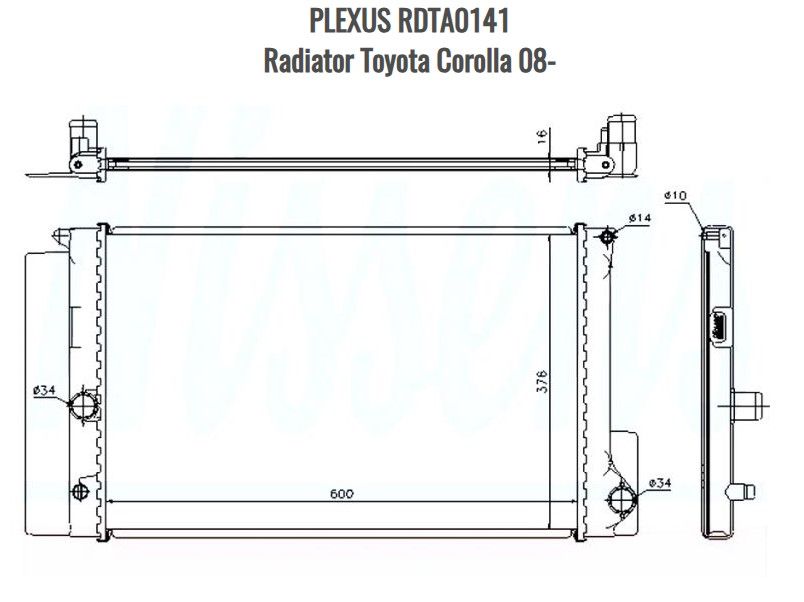

PLEXUS RDTA0141 Radiator Toyota Corolla 08-
Product Details
-Characteristics
| Length | 600 mm |
| Width | 369 mm |
| Depth | 16 mm |
| Radiator type | Brazed cooling fins |
| Transmission Type | Manual Transmission |
| Outlet | 34 mm |
| Inlet | 34 mm |
| Version | Brazed Flat Tube |
| Net Weight | 2 100 g |
| Gross Weight | 3 240 g |
| Packaging length | 83 cm |
| Packaging width | 46 cm |
| Packaging height | 12 cm |
| Description | Chassis | Model Year | kW | HP | cc | Engine Codes | ||
|---|---|---|---|---|---|---|---|---|
| TOYOTA Auris 1.3 (E150, E180) | 04.2010 - .. | |||||||
 |
Auris 1.3 X 5-dr | E150 | 04.2010 - 01.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Auris 1.3 X 5-dr MY13 | E180 | 01.2013 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Auris 1.3 X 5-dr MY15 | E180 | 06.2015 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
| TOYOTA Auris 1.4 (E150) | 08.2007 - 10.2009 | |||||||
|
Auris 1.4 RS 5-dr | E150 | 08.2007 - 10.2009 | 71 | 97 | 1 398 | 4ZZ-FE | |
|
Auris 1.4 RT 5-dr | E150 | 08.2007 - 10.2009 | 71 | 97 | 1 398 | 4ZZ-FE | |
| TOYOTA Auris 1.6 (E150, E180) | 08.2007 - .. | |||||||
|
Auris 1.6 RS 5-dr | E150 | 08.2007 - 10.2009 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Auris 1.6 RS MMT 5-dr | E150 | 08.2007 - 01.2010 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Auris 1.6 RT 5-dr | E150 | 08.2007 - 10.2009 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Auris 1.6 XI 5-dr | E150 | 04.2010 - 01.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XR 5-dr | E150 | 04.2010 - 11.2011 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XS 5-dr | E150 | 04.2010 - 01.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 TRD 5-dr | E150 | 01.2012 - 01.2013 | 132 | 179 | 1 598 | 1ZR-FAE-S | |
|
Auris 1.6 XI 5-dr MY13 | E180 | 01.2013 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XR 5-dr MY13 | E180 | 01.2013 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XS 5-dr MY13 | E180 | 01.2013 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XI 5-dr MY15 | E180 | 06.2015 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XR 5-dr MY15 | E180 | 06.2015 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Auris 1.6 XS 5-dr MY15 | E180 | 06.2015 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
| TOYOTA Auris 1.8 (E150, E180) | 08.2007 - .. | |||||||
|
Auris 1.8 RS 5-dr | E150 | 08.2007 - 01.2010 | 100 | 136 | 1 798 | 2ZR-FAE | |
|
Auris 1.8 RX 5-dr | E150 | 08.2007 - 09.2010 | 100 | 136 | 1 798 | 2ZR-FAE | |
| TOYOTA Auris 2.0 (E150) | 08.2007 - 01.2013 | |||||||
|
Auris 2.0 XD 5-dr | E150 | 04.2010 - 01.2013 | 93 | 126 | 1 998 | 1AD-FTV | |
| TOYOTA Corolla 1.3 (E110, E150, E170 (ZRE17_), E70, E80, E90) | 09.1980 - .. | |||||||
|
Corolla 1.3 Professional MY09 | E150 | 12.2008 - 10.2010 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Advanced MY09 | E150 | 02.2009 - 10.2010 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Impact | E150 | 11.2009 - 10.2010 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Advanced MY10 | E150 | 07.2010 - 10.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Impact MY10 | E150 | 07.2010 - 02.2014 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Professional MY10 | E150 | 07.2010 - 02.2014 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Heritage Edition | E150 | 11.2011 - 04.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Advanced Leather | E150 | 04.2013 - 02.2014 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Esteem MY14 | E170 (ZRE17_) | 02.2014 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Prestige MY14 | E170 (ZRE17_) | 02.2014 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Esteem MY15 | E170 (ZRE17_) | 07.2015 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Prestige MY15 | E170 (ZRE17_) | 07.2015 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Esteem MY17 | E170 (ZRE17_) | 02.2017 - .. | 73 | 99 | 1 329 | 1NR-FE | |
|
Corolla 1.3 Prestige MY17 | E170 (ZRE17_) | 02.2017 - .. | 73 | 99 | 1 329 | 1NR-FE | |
| TOYOTA Corolla 1.4 (E120, E150, E170 (ZRE17_)) | 09.2002 - .. | |||||||
|
Corolla 140i MY05 | E120 | 05.2005 - 01.2008 | 71 | 97 | 1 398 | 4ZZ-FE | |
|
Corolla 1.4 Advanced | E150 | 09.2007 - 01.2010 | 71 | 97 | 1 398 | 4ZZ-FE | |
|
Corolla 1.4 Professional | E150 | 09.2007 - 10.2009 | 71 | 97 | 1 398 | 4ZZ-FE | |
| TOYOTA Corolla 1.6 (E110, E120, E150, E170 (ZRE17_), E210, E70, E71, E72, E80, E82, E85, E90) | 09.1980 - .. | |||||||
|
Corolla 1.6 Advanced | E150 | 09.2007 - 10.2009 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Advanced MMT | E150 | 09.2007 - 10.2009 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Professional | E150 | 09.2007 - 01.2010 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Advanced MY09 | E150 | 02.2009 - 10.2010 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Professional MY09 | E150 | 03.2009 - 10.2010 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Sprinter MY10 | E150 | 05.2010 - 02.2014 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Advanced MY10 | E150 | 07.2010 - 10.2013 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Professional MY10 | E150 | 07.2010 - 02.2014 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Heritage Edition | E150 | 11.2011 - 04.2013 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Advanced Leather | E150 | 04.2013 - 02.2014 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Esteem MY14 | E170 (ZRE17_) | 02.2014 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Prestige MY14 | E170 (ZRE17_) | 02.2014 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Sprinter MY14 | E170 (ZRE17_) | 02.2014 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Esteem MY15 | E170 (ZRE17_) | 07.2015 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Prestige MY15 | E170 (ZRE17_) | 07.2015 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Sprinter MY15 | E170 (ZRE17_) | 07.2015 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Esteem MY17 | E170 (ZRE17_) | 02.2017 - .. | 90 | 122 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Prestige MY17 | E170 (ZRE17_) | 02.2017 - .. | 90 | 122 | 1 598 | 1ZR-FE | |
|
Corolla 1.6 Prestige PLUS MY18 | E170 (ZRE17_) | 05.2018 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
| TOYOTA Corolla 1.8 (E110, E120, E150, E170 (ZRE17_), E210, E70, E72, E90) | 05.1982 - .. | |||||||
|
Corolla 1.8 Advanced | E150 | 09.2007 - 10.2009 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Exclusive | E150 | 09.2007 - 10.2009 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Advanced MY09 | E150 | 03.2009 - 10.2010 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Exclusive MY09 | E150 | 03.2009 - 10.2010 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Exclusive MY14 | E170 (ZRE17_) | 02.2014 - .. | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Prestige MY14 | E170 (ZRE17_) | 02.2014 - .. | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Exclusive MY15 | E170 (ZRE17_) | 07.2015 - .. | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Prestige MY15 | E170 (ZRE17_) | 07.2015 - .. | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Corolla 1.8 Exclusive MY17 | E170 (ZRE17_) | 02.2017 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla 1.8 Prestige MY17 | E170 (ZRE17_) | 02.2017 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla 1.8L CVT | E170 (ZRE17_) | 07.2017 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
| TOYOTA Corolla 2.0 (E150, E210) | 07.1992 - .. | |||||||
|
Corolla 2.0 Exclusive No VSC MY10 | E150 | 05.2010 - 04.2013 | 102 | 139 | 1 987 | 3ZR-FE | |
|
Corolla 2.0 Exclusive VSC MY10 | E150 | 07.2010 - 02.2014 | 102 | 139 | 1 987 | 3ZR-FE | |
|
Corolla 2.0 Sprinter MY10 | E150 | 11.2010 - 04.2013 | 102 | 139 | 1 987 | 3ZR-FE | |
| TOYOTA Corolla Quest 1.6 (E150) | 05.2014 - .. | |||||||
|
Corolla Quest 1.6 | E150 | 05.2014 - 05.2016 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla Quest 1.6 AT | E150 | 05.2014 - 05.2016 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla Quest 1.6 Plus | E150 | 05.2014 - 05.2016 | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla Quest 1.6 | E150 | 05.2016 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
|
Corolla Quest 1.6 MY16 | E150 | 05.2016 - .. | 90-91 | 122-124 | 1 598 | 1ZR-FE | |
| TOYOTA Corolla Quest 1.8 (170) | 02.2020 - .. | |||||||
|
Corolla Quest 1.8 | 170 | 02.2020 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla Quest 1.8 Exclusive | 170 | 02.2020 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla Quest 1.8 Prestige | 170 | 02.2020 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla Quest 1.8 Plus MY21 | 170 | 01.2021 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
|
Corolla Quest 1.8 Prestige MY21 | 170 | 01.2021 - .. | 103 | 140 | 1 794 | 2ZR-FE | |
| TOYOTA Corolla Verso 1.6 ((ZZE12_)) | 06.2005 - 10.2009 | |||||||
|
Corolla Verso 160 MPV MY07 | (ZZE12_) | 09.2007 - 10.2009 | 81 | 110 | 1 598 | 3ZZ-FE | |
|
Corolla Verso 160 SX MPV MY07 | (ZZE12_) | 09.2007 - 10.2009 | 81 | 110 | 1 598 | 3ZZ-FE | |
| TOYOTA Corolla Verso 1.8 ((ZZE12_)) | 05.2004 - 10.2009 | |||||||
|
Corolla Verso 180 TX MPV MY07 | (ZZE12_) | 09.2007 - 10.2009 | 92-103 | 125-140 | 1 794 | 1ZZ-FE | |
| TOYOTA Verso 1.6 (20) | 05.2009 - .. | |||||||
|
Verso 1.6 S MPV MY09 | 20 | 05.2009 - 01.2011 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 SX MPV MY09 | 20 | 05.2009 - 01.2011 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 S MPV MY10 | 20 | 12.2010 - 05.2012 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 SX MPV MY10 | 20 | 12.2010 - 05.2012 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 S MPV MY12 | 20 | 04.2012 - 04.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 SX MPV MY12 | 20 | 04.2012 - 04.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 S MPV MY13 | 20 | 04.2013 - 10.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 SX MPV MY13 | 20 | 04.2013 - 10.2013 | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 S MPV MY13.5 | 20 | 11.2013 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
|
Verso 1.6 SX MPV MY13.5 | 20 | 11.2013 - .. | 97 | 132 | 1 598 | 1ZR-FAE | |
| TOYOTA Verso 1.8 (20) | 05.2009 - .. | |||||||
|
Verso 1.8 TX MPV MY09 | 20 | 05.2009 - 01.2011 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 SX MPV CVT MY10 | 20 | 12.2010 - 05.2012 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 TX MPV MY10 | 20 | 12.2010 - 05.2012 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 SX MPV CVT MY12 | 20 | 04.2012 - 04.2013 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 TX MPV MY12 | 20 | 04.2012 - 04.2013 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 TX MPV MY13 | 20 | 04.2013 - 10.2013 | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
|
Verso 1.8 TX MPV MY13.5 | 20 | 11.2013 - .. | 98-108 | 133-147 | 1 798 | 2ZR-FE | |
| TOYOTA Yaris 1.3 (XP130, XP90) | 11.2005 - .. | |||||||
|
Yaris 1.3 Xi 3-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xi 5-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 XR 3-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 XR 5-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 3-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 5-dr | XP130 | 11.2011 - 05.2013 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 5-dr MY13 | XP130 | 05.2013 - 09.2014 | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 5-dr MY14 | XP130 | 09.2014 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 5-dr MY15 | XP130 | 06.2015 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
|
Yaris 1.3 Xs 5-dr MY15.5 | XP130 | 01.2016 - .. | 73-74 | 99-101 | 1 329 | 1NR-FE | |
